    AWS for DevOpsLesson 12 of 17
    Your progress · 0%
    On this page
    1. A function is still a production workload
    2. Package, role and invocation
    3. Function URLs and API Gateway
    4. Limits, versions and triggers
    5. SQS and HTTP API are production-shaped triggers
    ↖ Course roadmap
    Lesson 12 · Lambda

    Lambda: code without servers

    Create a function in the console, test it, give it a public function URL and call it with curl, read its logs, and choose memory, timeout, versions and triggers deliberately.

    35 min read · intermediate · hands-on

    By the end of this lesson you'll be able to

    0 of 5 complete

    A function is still a production workload

    Lambda runs your code when something happens (an HTTP request, a file landing in S3, a message in a queue, a schedule) and bills per request and per millisecond. There are no servers to patch or size, but there is still design work: you own the handler, its dependencies, permissions, timeout, retries, logs and alarms.

    This lesson builds one small function in a real account, calls it four ways (CLI, console test, a public function URL, the logs), and deletes it.

    Package, role and invocation

    Lambda → Functions → Create function:

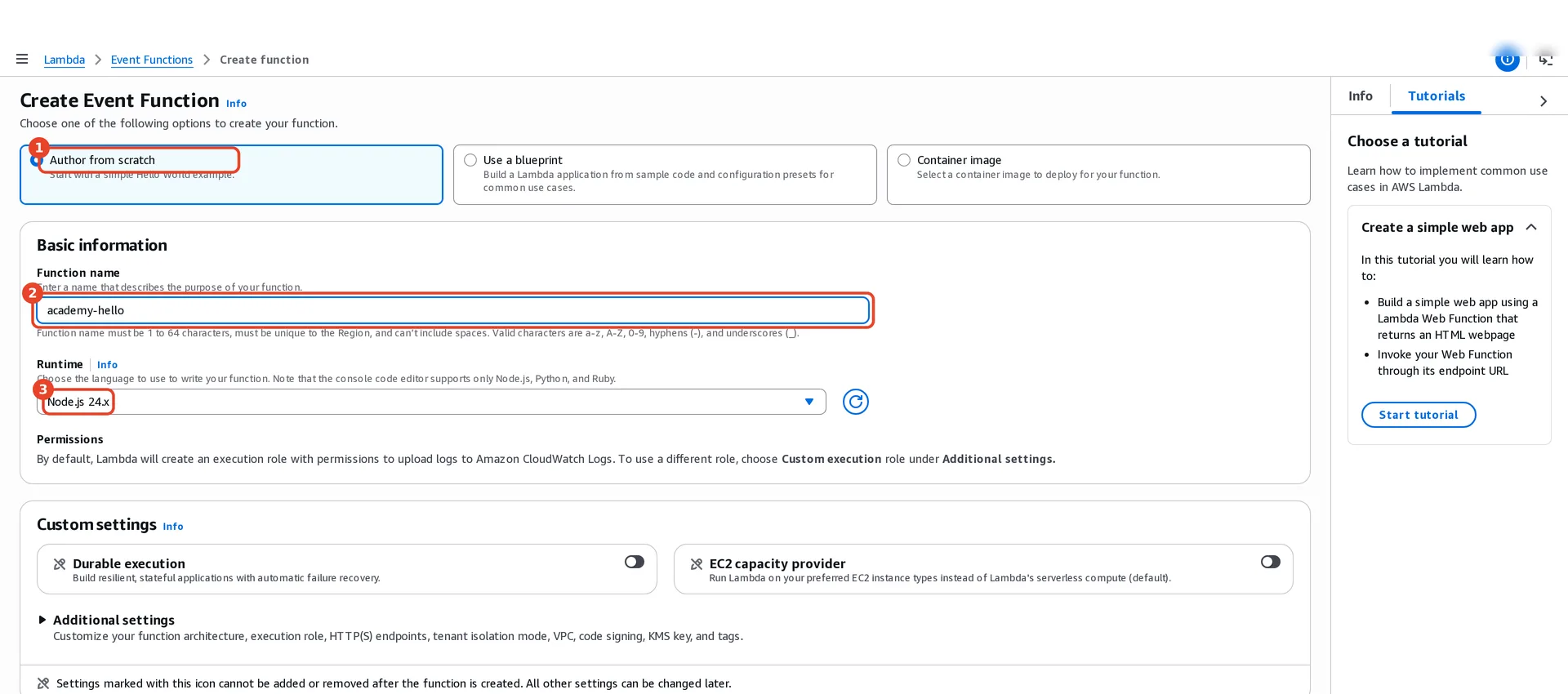

    (1) Author from scratch. (2) A name. (3) A runtime. Lambda creates an execution role that can write logs.© Screenshot: DevOps Academy

    (1) Author from scratch. (2) A name. (3) A runtime. Lambda creates an execution role that can write logs.© Screenshot: DevOps Academy

    The execution role is what the code runs as. Lambda assumes it for every invocation, so the function never holds access keys. The default role can only write logs; add exactly the extra permissions the code needs.

    The handler, index.mjs:

    export const handler = async (event) => {
      const name = event.queryStringParameters?.name ?? event.name ?? 'world';
      console.log(JSON.stringify({ msg: 'greeting', name }));
      return {
        statusCode: 200,
        headers: { 'content-type': 'application/json' },
        body: JSON.stringify({ message: `Hello, ${name}!`, region: process.env.AWS_REGION }),
      };
    };


    Deploy it from the CLI and invoke it directly:

    $ zip fn.zip index.mjs
    $ aws lambda update-function-code --function-name academy-hello --zip-file fileb://fn.zip
    $ aws lambda invoke --function-name academy-hello --cli-binary-format raw-in-base64-out \
        --payload '{"name":"Rajeev"}' out.json && cat out.json
    {"statusCode":200,"headers":{"content-type":"application/json"},"body":"{\"message\":\"Hello, Rajeev!\",\"region\":\"ap-south-1\"}"}

    aws lambda update-function-code --function-name academy-hello --zip-file fileb://fn.zip
    • awsthe AWS command line

    The Test tab does the same from the console:

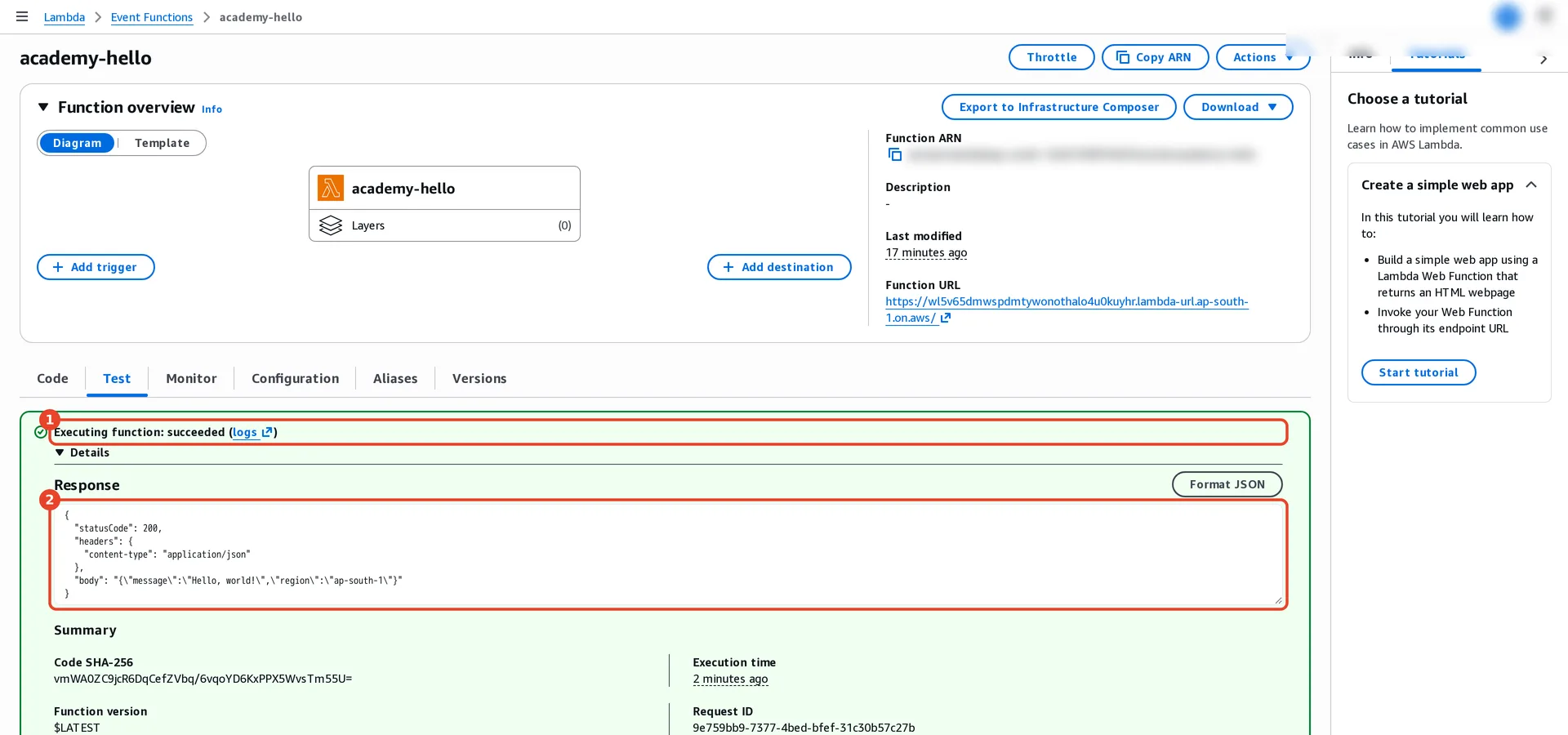

    (1) The test invocation succeeded. (2) The full response object the handler returned.© Screenshot: DevOps Academy

    (1) The test invocation succeeded. (2) The full response object the handler returned.© Screenshot: DevOps Academy

    Function URLs and API Gateway

    A function URL gives the function its own HTTPS endpoint:

    $ aws lambda create-function-url-config --function-name academy-hello --auth-type NONE
    $ aws lambda add-permission --function-name academy-hello --statement-id url-public \
        --action lambda:InvokeFunctionUrl --principal '*' --function-url-auth-type NONE
    $ aws lambda add-permission --function-name academy-hello --statement-id url-invoke \
        --action lambda:InvokeFunction --principal '*' --invoked-via-function-url
    $ curl -s "https://<url-id>.lambda-url.ap-south-1.on.aws/?name=learner"
    {"message":"Hello, learner!","region":"ap-south-1"}

    aws lambda create-function-url-config --function-name academy-hello --auth-type NONE
    • awsthe AWS command line
    curl -s "https://<url-id>.lambda-url.ap-south-1.on.aws/?name=learner"
    • curlmake an HTTP request
    • -ssilent: no progress bar

    Through a URL, Lambda turns the returned object into a real HTTP response: status 200, the header, and only the body. A public URL needs both permission statements; with only the first, requests get 403 Forbidden.

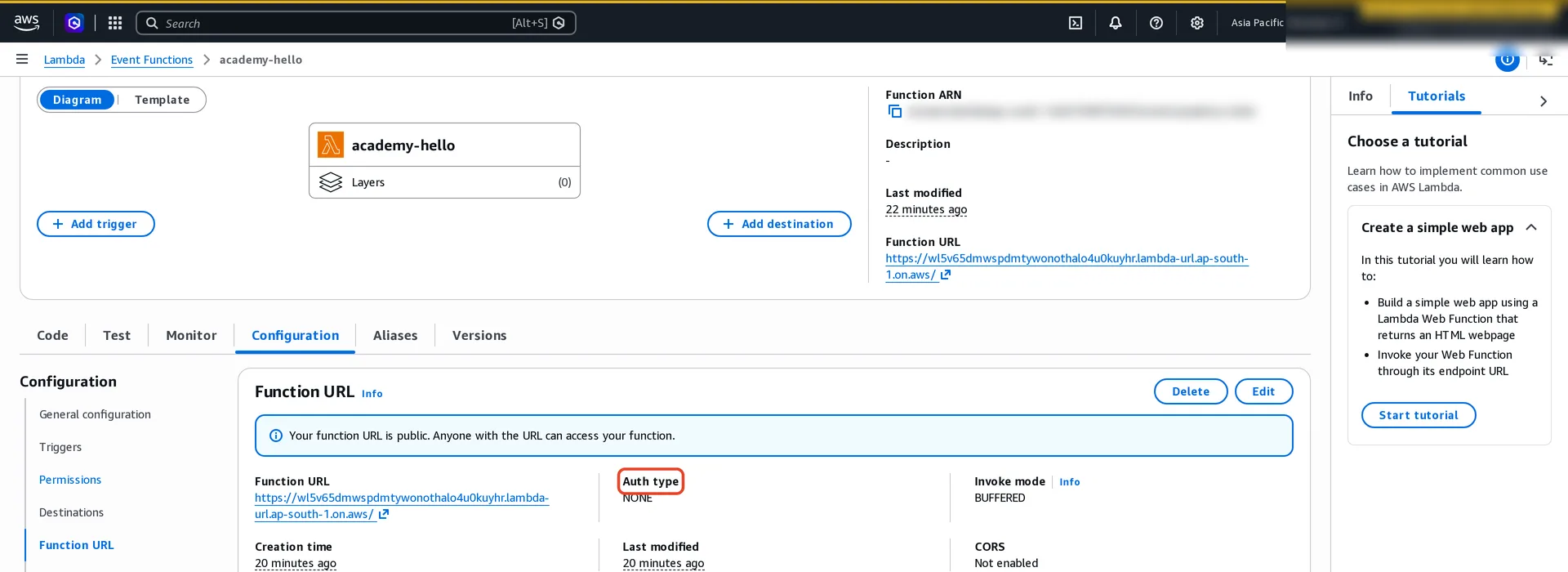

    (1) Auth type NONE: public. The console warns that anyone with the URL can call the function.© Screenshot: DevOps Academy

    (1) Auth type NONE: public. The console warns that anyone with the URL can call the function.© Screenshot: DevOps Academy
    Function URLAPI Gateway (HTTP API / REST API)
    Endpointone per functionmany routes to many functions
    AuthIAM or noneIAM, JWT (Cognito, Auth0), Lambda authorizers, API keys
    ExtrasCORSthrottling, usage plans, custom domains, stages, request validation (REST)
    Use fora webhook, a quick internal endpointa real public API
    Anonymous is not a production default

    --auth-type NONE makes the endpoint public, which is fine for one curl in a lesson. In production use AWS_IAM, or put API Gateway with an authorizer in front, and delete public URLs you no longer need.

    Limits, versions and triggers

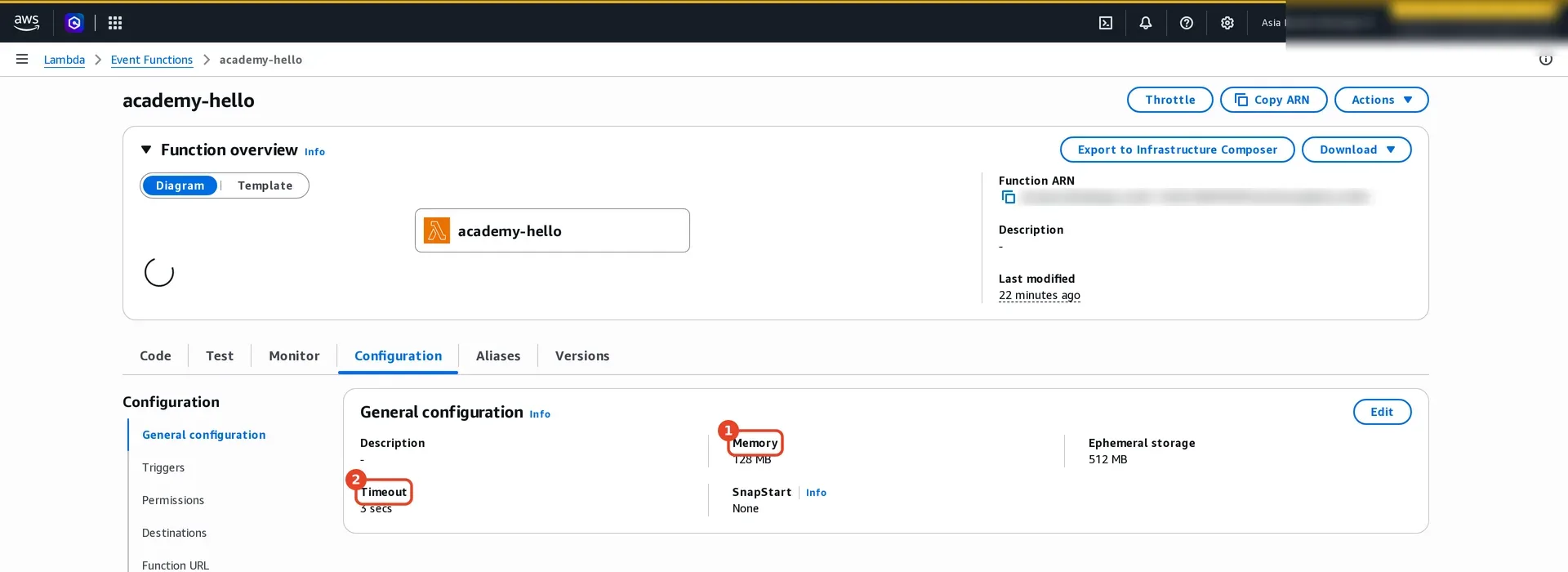

    (1) Memory, which also sets CPU. (2) Timeout: 3 seconds by default, up to 15 minutes.© Screenshot: DevOps Academy

    (1) Memory, which also sets CPU. (2) Timeout: 3 seconds by default, up to 15 minutes.© Screenshot: DevOps Academy
    SettingWhat to know
    Memory (128 MB–10 GB)CPU grows with memory; more memory often makes a function faster and cheaper
    Timeout (up to 15 min)bounds one invocation; set it just above the slowest normal run
    Concurrencyhow many run at once; reserved concurrency caps a function so it can't overwhelm a database
    Cold startthe first request on a new environment loads the runtime and your code; keep packages small

    Every invocation logs to CloudWatch Logs under /aws/lambda/<function>, ending with a report line that shows the bill:

    REPORT RequestId: 288a1386-efea-40df-92ed-bbdbe736b6f2  Duration: 12.28 ms  Billed Duration: 13 ms  Memory Size: 128 MB  Max Memory Used: 80 MB


    Versions freeze the code and configuration ($LATEST is always the editable one). An alias such as prod points at a version, so a rollback is moving the alias back. Layers share libraries between functions, and container image functions let you ship up to 10 GB as an image from ECR (lesson 11).

    Triggers turn events into invocations, each with its own retry behaviour:

    TriggerHow it callsOn failure
    API Gateway / function URLsynchronousthe caller gets the error
    S3 eventsasynchronousLambda retries twice, then a dead-letter queue or destination
    SQSLambda polls batchesmessages return to the queue, then its DLQ (lesson 14)
    EventBridge scheduleasynchronousretries, then a DLQ or destination

    Retries mean the same event can arrive twice, so make handlers idempotent.

    Production controls

    Least-privilege execution roles, structured JSON logs, alarms on errors and throttles (lesson 13), explicit timeouts on the function and on everything it calls, secrets from Secrets Manager (lesson 15), versions and an alias for rollback, and the whole thing in IaC (lesson 16).

    SQS and HTTP API are production-shaped triggers

    An SQS event source mapping polls a queue and batches messages into Lambda events. The function must be idempotent because a message can be delivered again; configure a visibility timeout longer than the function timeout and use a dead-letter queue for messages that repeatedly fail. An API Gateway HTTP API is the better front door when you need routes, authorizers, throttling or access logs; a Function URL is the smaller alternative.

    Enable X-Ray tracing when you need a request map across Lambda and downstream calls. It adds useful correlation, not business-level observability, so retain structured logs and metrics too.

    $ aws lambda get-function-configuration --function-name "$FUNCTION" \
      --query '{Runtime:Runtime,Memory:MemorySize,Timeout:Timeout,Tracing:TracingConfig.Mode}' --output table
    $ aws lambda list-event-source-mappings --function-name "$FUNCTION" \
      --query 'EventSourceMappings[].{State:State,Source:EventSourceArn,Batch:BatchSize}' --output table
    $ aws apigatewayv2 get-apis --query 'Items[].{Name:Name,Protocol:ProtocolType,Endpoint:ApiEndpoint}' --output table

    aws lambda get-function-configuration --function-name "$FUNCTION" \
    • awsthe AWS command line
    aws apigatewayv2 get-apis --query 'Items[].{Name:Name,Protocol:ProtocolType,Endpoint:ApiEndpoint}' --output table
    • --querypick fields from the JSON response
    • --outputoutput format

    Create the queue, API and mapping only for the exercise, record the returned IDs, and delete each by ID before leaving the account. Never leave a public endpoint or an event source polling a queue after the lesson.

    ⌘
    Mini mission

    A public function, called and removed

    Create a function from the console or CLI, invoke it directly, give it a public function URL, call that URL with curl, read its log, then delete the URL, the function, its log group and its role.

    Input: An AWS account and the AWS CLIOutput: Hello, learner! from the URL, a REPORT line in the logs, and ResourceNotFoundException after deletion
    Reveal one safe solution
    $ # Console: Lambda → Create function → academy-hello, Node.js 24.x → Create (it also creates the role)
    $ zip fn.zip index.mjs                                   # the handler from this lesson
    $ aws lambda update-function-code --function-name academy-hello --zip-file fileb://fn.zip
    $ aws lambda wait function-updated --function-name academy-hello
    $ URL=$(aws lambda create-function-url-config --function-name academy-hello --auth-type NONE --query FunctionUrl --output text)
    $ aws lambda add-permission --function-name academy-hello --statement-id url-public \
        --action lambda:InvokeFunctionUrl --principal '*' --function-url-auth-type NONE
    $ aws lambda add-permission --function-name academy-hello --statement-id url-invoke \
        --action lambda:InvokeFunction --principal '*' --invoked-via-function-url
    $ curl -s "${URL}?name=learner"
    {"message":"Hello, learner!","region":"ap-south-1"}
    $ ROLE=$(aws lambda get-function --function-name academy-hello --query Configuration.Role --output text | awk -F/ '{print $NF}')
    $ aws lambda delete-function-url-config --function-name academy-hello
    $ aws lambda delete-function --function-name academy-hello
    $ aws logs delete-log-group --log-group-name /aws/lambda/academy-hello
    $ for p in $(aws iam list-attached-role-policies --role-name $ROLE --query 'AttachedPolicies[].PolicyArn' --output text); do
        aws iam detach-role-policy --role-name $ROLE --policy-arn $p; aws iam delete-policy --policy-arn $p; done
    $ aws iam delete-role --role-name $ROLE

    aws lambda update-function-code --function-name academy-hello --zip-file fileb://fn.zip
    • awsthe AWS command line
    curl -s "${URL}?name=learner"
    • curlmake an HTTP request
    • -ssilent: no progress bar
    for p in $(aws iam list-attached-role-policies --role-name $ROLE --query 'AttachedPolicies[].PolicyArn' --output text); do
    • forloop over a list
    • $(aws iam list-attached-role-policies --role-name $ROLE --query 'AttachedPolicies[].PolicyArn' --output text);the output of another command
    • dostart of what the loop runs each time

    The console-created role comes with its own small logging policy, which is why the loop deletes the policy too. A few invocations are far inside Lambda's free tier.
