GitHub Actions: your first real pipeline

How an event becomes a run

A workflow is a YAML file in .github/workflows/. Something happens in the repository (a push, a pull request, a button press, a time of day), GitHub finds every workflow listening for that event, and starts a run. Each run has jobs; each job gets a fresh runner machine and executes its steps in order:

⤢ View

Event → workflow run → jobs, each on its own fresh runner → steps in order. A failing step fails the job.© Diagram: DevOps Academy

Close

Every lesson in this course builds the same small app, shop-api: a Node.js service with a /health endpoint, a /price endpoint that adds tax, and tests that use Node's built-in test runner. No dependencies to install, so the pipeline is the only thing you're learning:

$ npm run lint && npm test
✔ adds 18% tax and rounds to cents
✔ rejects a negative amount
✔ GET /health answers ok
ℹ tests 3
ℹ pass 3
ℹ fail 0

Here's its first pipeline. Save it as .github/workflows/ci.yml:

name: CI

on:
  push:
    branches: [main]
  pull_request:
  workflow_dispatch:

jobs:
  lint:
    runs-on: ubuntu-latest
    timeout-minutes: 5
    steps:
      - uses: actions/checkout@v7
      - uses: actions/setup-node@v7
        with:
          node-version: 22
      - run: npm run lint

  test:
    needs: lint
    runs-on: ubuntu-latest
    timeout-minutes: 10
    steps:
      - uses: actions/checkout@v7
      - uses: actions/setup-node@v7
        with:
          node-version: 22
      - name: Run the tests
        run: npm test

The YAML you need

Workflows use a small part of YAML. Indentation is structure: two spaces, never tabs.

- name: Build and smoke-test
  run: |
    npm run build
    node dist/server.js &
    sleep 2 && curl -fsS http://localhost:3000/health

Triggers: when a workflow runs

The on: block lists the events. These five cover almost every pipeline:

on:
  push:
    branches: [main]            # pushes to main only
    paths-ignore: ['**.md']     # skip runs for documentation-only changes
  pull_request:                 # every PR, on open and on each new push to it
    branches: [main]            # …targeting main
  workflow_dispatch:            # a "Run workflow" button, and gh workflow run
    inputs:
      environment:
        type: choice
        options: [staging, production]
  schedule:
    - cron: '30 22 * * *'       # 22:30 UTC = 04:00 IST, every day
  release:
    types: [published]          # when a GitHub Release is published

schedule uses UTC, and scheduled runs can start several minutes late when GitHub is busy. They also stop after 60 days without activity in a public repository. Start a dispatch workflow from the terminal with gh workflow run ci.yml.

Jobs and steps

A job is a set of steps that run on one runner. Jobs run in parallel unless needs: says otherwise:

jobs:
  lint:    { runs-on: ubuntu-latest, steps: [...] }
  test:    { needs: lint, runs-on: ubuntu-latest, steps: [...] }   # waits for lint
  build:   { needs: [lint, test], runs-on: ubuntu-latest, steps: [...] }

A step does one of two things:

Each step must succeed (exit code 0) for the next one to run. When one fails, the job fails, the rest of its steps are skipped, and jobs that need it are skipped too.

Runners: where jobs run

A runner is the machine a job runs on. GitHub-hosted runners are fresh virtual machines, created for each job and destroyed after it:

The images come with Git, Docker, Node, Python, Java, the cloud CLIs and much more preinstalled (the full list is linked below). Public repositories get free minutes; private ones get a monthly allowance on each plan. The Scaling pipelines lesson covers self-hosted runners, for when you need your own hardware or network access.

Check it before you push

A typo in a workflow is found only after you push, wait and read a red run. actionlint finds most of them in under a second, on your machine. Here it is on a deliberately broken workflow:

# .github/workflows/broken.yml
on: push
jobs:
  t:
    runs-on: ubuntu-latest
    steps:
      - run: echo ${{ github.event.pull_request.title }}
      - uses: actions/checkout@v3
    needs: build

$ actionlint
.github/workflows/broken.yml:3:3: job "t" needs job "build" which does not exist in this workflow [job-needs]
.github/workflows/broken.yml:6:23: "github.event.pull_request.title" is potentially untrusted. avoid using it directly in inline scripts. instead, pass it through an environment variable. [expression]
.github/workflows/broken.yml:7:15: the runner of "actions/checkout@v3" action is too old to run on GitHub Actions. update the action's version to fix this issue [action]
$ echo $?
1

Three real bugs: a job that waits for one that doesn't exist, a script-injection hole (the Pipeline security lesson explains it), and an action too old to run. Messages are shortened here; actionlint adds a link to the docs for each.

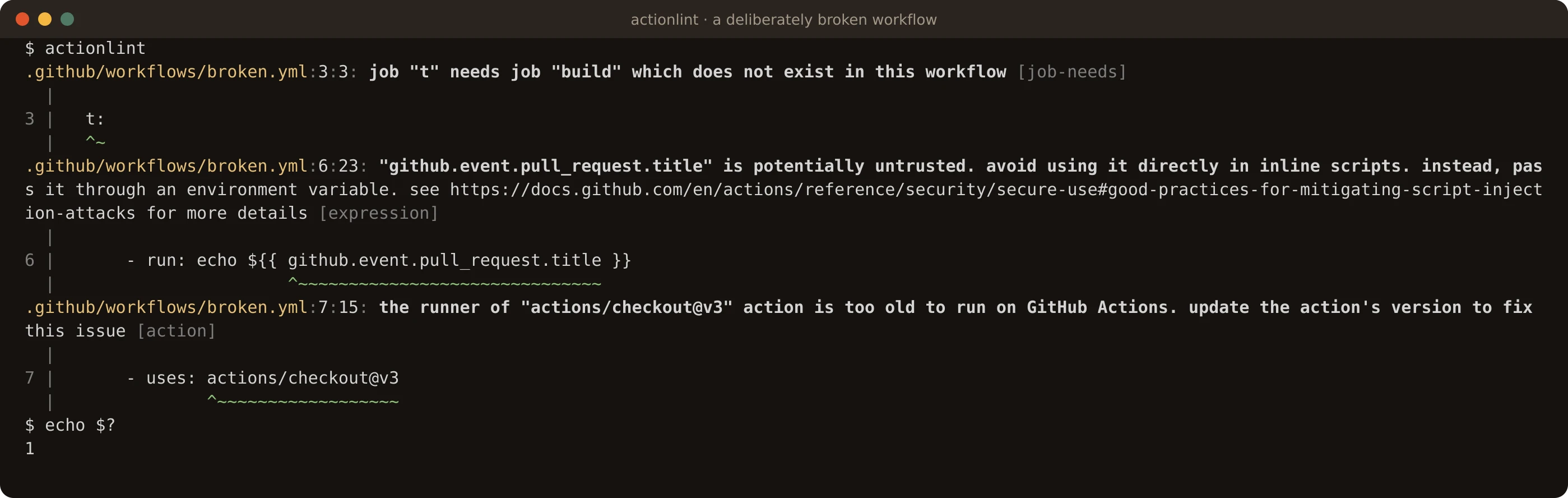

⤢ View

The same run in a real terminal: each error points at the exact line and column, and the exit code 1 fails a pre-commit hook or CI job.© Screenshot: DevOps Academy

Close

It checks structure, needs:, expressions, action inputs, outdated actions and, with shellcheck installed, the shell in your run: steps. Run it in a pre-commit hook (the Git course's Hooks lesson) and you'll rarely see a broken workflow on GitHub.

import { createServer } from 'node:http'

export function priceWithTax(amount, rate = 0.18) {
  if (!Number.isFinite(amount) || amount < 0) throw new RangeError('amount must be a positive number')
  return Math.round(amount * (1 + rate) * 100) / 100
}

export function createApp() {
  return createServer((req, res) => {
    const url = new URL(req.url, 'http://localhost')
    if (url.pathname === '/health') return send(res, 200, { status: 'ok', version: process.env.APP_VERSION ?? 'dev' })
    if (url.pathname === '/price') {
      try {
        return send(res, 200, { total: priceWithTax(Number(url.searchParams.get('amount'))) })
      } catch (err) {
        return send(res, 400, { error: err.message })
      }
    }
    send(res, 404, { error: 'not found' })
  })
}

function send(res, status, body) {
  res.writeHead(status, { 'content-type': 'application/json' })
  res.end(JSON.stringify(body))
}

// src/server.js
import { createApp } from './app.js'

const port = Number(process.env.PORT ?? 3000)
createApp().listen(port, () => console.log(`shop-api listening on :${port}`))

// test/app.test.js
import { test } from 'node:test'
import assert from 'node:assert/strict'
import { priceWithTax, createApp } from '../src/app.js'

test('adds 18% tax and rounds to cents', () => {
  assert.equal(priceWithTax(100), 118)
  assert.equal(priceWithTax(9.99), 11.79)
})

test('rejects a negative amount', () => {
  assert.throws(() => priceWithTax(-1), RangeError)
})

test('GET /health answers ok', async () => {
  const server = createApp().listen(0)
  const { port } = server.address()
  const res = await fetch(`http://localhost:${port}/health`)
  assert.equal(res.status, 200)
  assert.equal((await res.json()).status, 'ok')
  server.close()
})

$ mkdir -p shop-api/src shop-api/test shop-api/.github/workflows && cd shop-api && git init
$ npm init -y
$ npm pkg set type=module scripts.test="node --test" scripts.lint="node --check src/app.js && node --check src/server.js"
$ npm run lint && npm test           # after saving the three files above
$ nano .github/workflows/ci.yml      # the workflow from this lesson
$ actionlint && echo "workflow OK"
workflow OK
$ git add . && git commit -m "ci: add lint and test workflow"
$ gh repo create shop-api --private --source=. --push
$ git switch -c test/ci && git commit --allow-empty -m "test: trigger CI" && git push -u origin test/ci
$ gh pr create --fill && gh pr checks --watch
